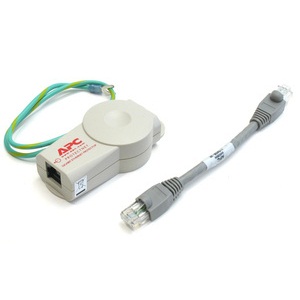

Protects an Ethernet data port from damaging surges. Compatible with Power over Ethernet (PoE) and 10/100/1000 Base-T networks.

– Peak Current Normal Mode : 6.50 kAmps
– Peak Current Common Mode : 0.25 kAmps
– NM Surge Response Time (ns) : 1 ns
– Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
– Data Lines Protected (multi-line only) : 1-8
– Let Through Voltage Rating : < 60
– Net Weight : 0.05 KG
– Maximum Height : 104.00 mm
– Maximum Width : 47.00 mm
– Maximum Depth : 28.00 mm
– Shipping Height : 104.00 mm
– Shipping Width : 90.00 mm
– Shipping Depth : 29.00 mm
– Master Carton Units : 144.00
– Master Carton Dimensions (Length x Width x Height) : 522 x 582 x 434 mm
– SCC Codes : 1073130422673 1
– Color : Beige
– Operating Environment : -15 – 65 C
– Operating Relative Humidity : 0 – 95%
– Storage Temperature : -15 – 65 C
– Storage Relative Humidity : 0 – 95%
– Regulatory Approvals : UL 497B
– Standard Warranty : 10 years repair or replace
– RoHS : Compliant
– REACH : REACH: Contains No SVHCs
– Other Environmental Compliance : China RoHS
