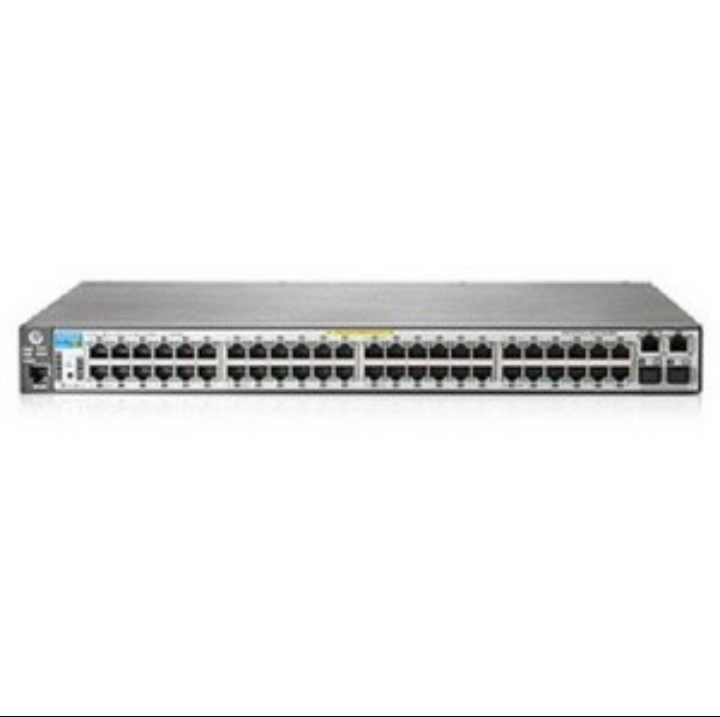

Specifications HP 2620-48-PoE+ (J9627A)

Ports

48 RJ-45 Autosensing 10/100 PoE+ Ports

Manageable

Command-line interface; Web browser

Power Supply

54.9W (max), 29.6W (stand by)

Input voltage : 100-127/200-240 VAC

Input frequency : 50/60 Hz

Others

General Protocols : IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1350 TFTP Protocol (revision 2); RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2453 RIPv2; RFC 3046 DHCP Relay Agent Information Option

Network Management : IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON

Memory and Processor : Processor : PowerPC FreeScale 8313 @ 400 MHz, 512 MB flash, packet buffer size: 2 MB, 512 MB SDRAM, 4 MB flash ROM

Routing/Switching Capacity : 17.6 Gbps

Dimensions : 44.3 x 4.39 x 36.8 cm (WxHxD)
