Powerline Performance
1000 Mbps
WiFi Performance
802.11ac
Number of Ethernet ports
One (1) 10/100/1000 Gigabit Ethernet port on each adapter
Key Features
Gigabit PowerLINE WiFi speed
Perfect for connecting smart TVs, streaming players & game consoles
Ideal for HD streaming & lag-free gaming
Typical coverage up to 500 m
Pick-a-plug LED for highest possible performance
Sets up in minutes, no need to install software
Secures the network connection with the touch of a button
Security
Push and Secure button
Product diagram

Physical Specifications
PowerLINE WiFi 1000 Access Point (PLW1000) Dimensions: 121 x 87 x 38 mm (4.75 x 3.44 x 1.5 in)
PowerLINE WiFi 1000 Access Point (PLW1000) Weight: 266 g (0.59 lb)
Powerline 1000 Adapter (PL1000) Dimensions: 100 x 59 x 35.9 mm (3.9 x 2.3 x 1.4 in)
Powerline 1000 Adapter (PL1000) Weight: 126 g (0.28 lb)
Package Contents

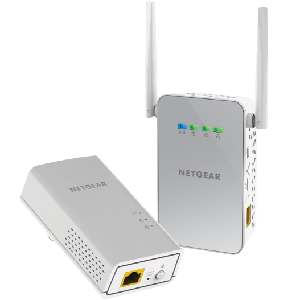

One (1) PowerLINE WiFi 1000 Access Point (PLW1000v2)
One (1) Powerline 1000 Adapter (PL1000v2)
Two (2) 2 m (6.5 ft) Ethernet cables
Quick install documentation
Standards
10/100/1000 Mbps Gigabit Ethernet port
PowerLINE WiFi 1000 Access Point (PLW1000): IEEE 2.4 GHz/5 GHz 802.11 b/g/n/ac wireless interface
HomePlug AV2 compliant*
IEEE 1901 and IEEE 802.3 compliant
System Requirements
RJ-45 Ethernet port to connect via Ethernet cable
2.4 GHz/5 GHz 802.11 b/g/n/ac wireless interface to connect wirelessly to PLW1000
Microsoft Windows 8, 7, Vista, XP or Mac OS X to install software utility
