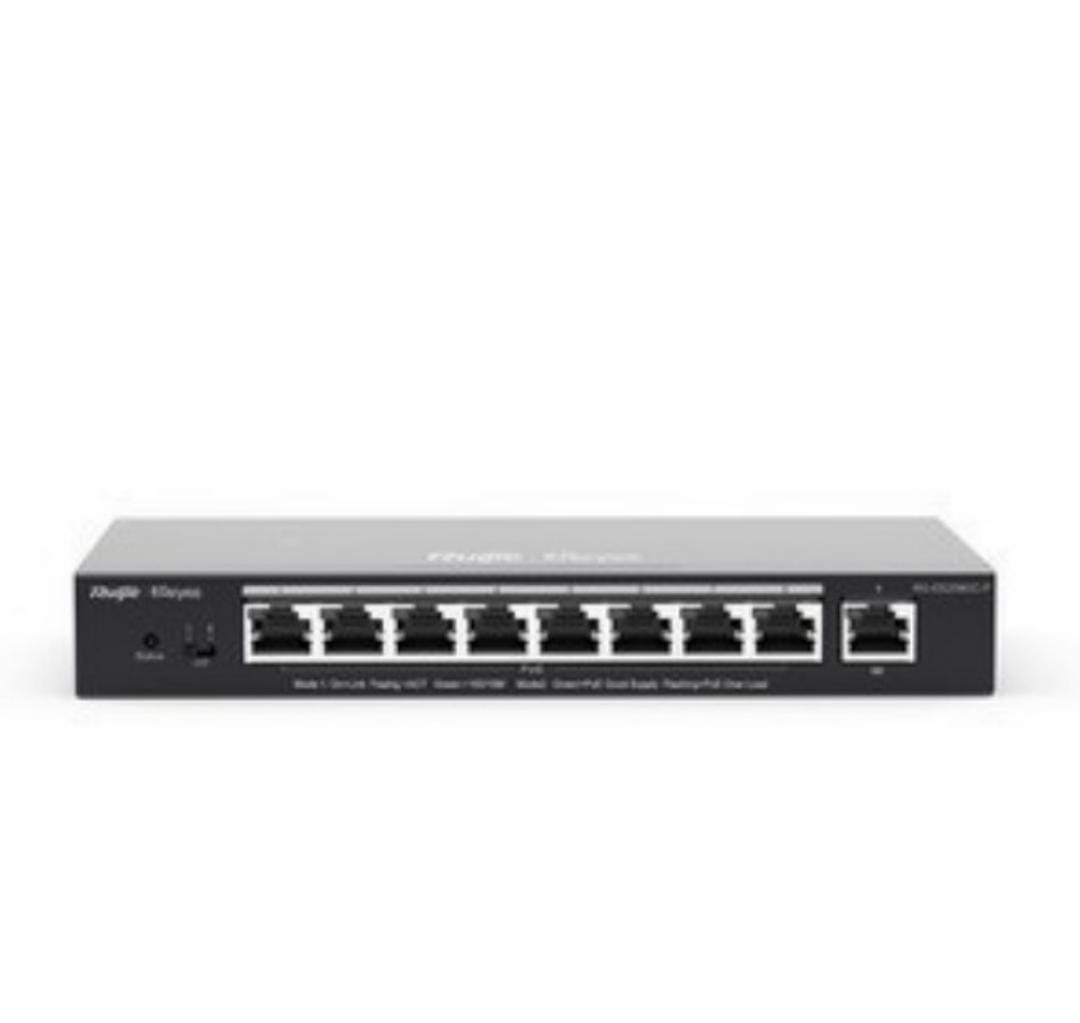

Model

RG-EG210G-P

Model

RG-EG210G-P

Fixed ports

10 10/100/1000M Base-T portssupporting up to 4 WAN ports

Default: 1 WAN port and 9 LAN ports

LAN8, LAN7 and LAN6 can be switched to WAN ports

RAM

256MB

Flash

16MB

Maximum number of clients

Up to 200 concurrent clients

Recommended bandwidth

600M asymmetric bandwidth (flow control disabled)

500M asymmetric bandwidth (flow control enabled)

Local power supply

Support 220V AC local power supply

Power consumption

<80W Basic network features Network access PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers Routing Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams Security ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping Other protocols DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS Gateway Flow control Support custom flow control policies, IP-based automatic bandwidth assignment Traffic audit Real-time traffic audit, IP traffic visualization Behavior management Time-based and IP policy-based access control VPN IPsec VPN (8 tunnels) server and client Wireless management Management capacity In AC mode, the maximum management capacity is 500 In gateway mode, the maximum management capacity is 150 AP management Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist Roaming Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track Switch management Management capacity Maximum ma
