Built-in 12dBi 2×2 dual-polarized directional MIMO antenna
– Adjustable transmission power from 0 to 30dBm/1000mw
– System-level optimizations for more than 13km long range wireless transmission
– TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
– Centralized Management System Pharos Control
– AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
– Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

– Processor : Qualcomm Atheros 560MHz CPU, MIPS 74Kc
– Memory : 64MB DDR2 RAM, 8MB Flash
– Interface : 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset Button
– Power Supply : Passive Power over Ethernet via LAN0 ( 4,5pins; -7,8pins), Voltage range: 16-27VDC
– Power Consumption : 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
– Antenna Type : Built-in 12dBi 2×2 Dual-polarized Directional Antenna, Beam Width: 60 (H-Plane) / 30 (E-Plane), Note: For more details, please refer to datasheet
– Protection : 15KV ESD Protection, 6KV Lightning Protection
– Enclosure : Outdoor ASA stabilized plastic material, IPX5 waterproof Certification
– Wireless Standards : IEEE 802.11b/g/n (with Pharos MAXtream disabled)
– Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
– Wireless Speeds : Up to 300Mbps (40MHz,Dynamic), Up to 144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps (10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)

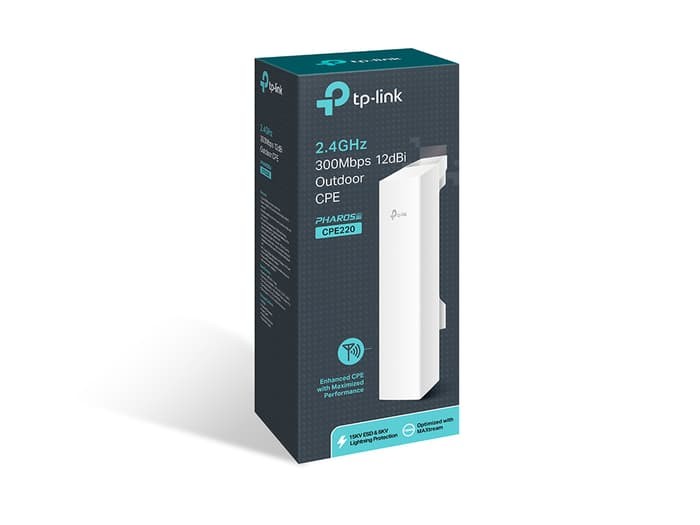

– Outdoor Wireless CPE, 24V 1A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
