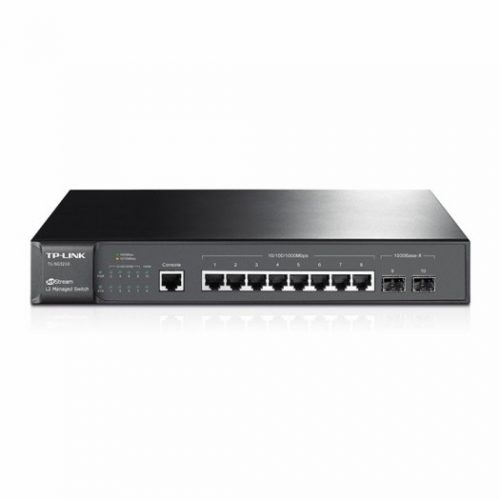

Overview Of TP-Link TL-SG3210 JetStreamTM 8-Port Gigabit L2 Lite Managed Switch
Spesifikasi:
– Standar dan Protokol : IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad, IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q, IEEE 802.1x,IEEE 802.1p
– Tampilan : 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2 1000Mbps SFP Slots, 1 Console Port
– Media Jaringan : 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m), 1000BASE-X: MMF, SMF
– Fan Quantity : Fanless
– Catu Daya : 100240VAC, 50/60Hz
– Dimensi ( W x D x H ) : 11.6*7.9*1.7in. (294*200*44 mm)
– Konsumsi Daya : Maximum: 10.7W (220V/50Hz)
– Bandwidth/Backplane : 20Gbps
– Tabel Alamat MAC : 8k
– Paket Memori Buffer : 4Mb
– Paket Penerusan Rate : 14.9Mpps
– Rangka Jumbo : 10240 Bytes
– Quality of Service : Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling: SP, WRR, SP+WRR, Port/Flow- based Rate Limiting, Voice VLAN
– Fitur L2 : IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group), Spanning Tree STP/RSTP/MSTP, Port isolation, BPDU filtering/guard, TC/Root protect, Loop back detection, 802.3x Flow Control
– VLAN : Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs), Port/ MAC/Protocol-based VLAN
GARP/GVRP, Management VLAN configuration
– Daftar Akses Kontrol : L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
– Keamanan : IP-MAC-Port-VID Binding, IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN, DoS Defence, Dynamic ARP inspection (DAI), SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control
– Manajemen : Web-based GUI and CLI management, SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK priv
