Portfolio CommScope®

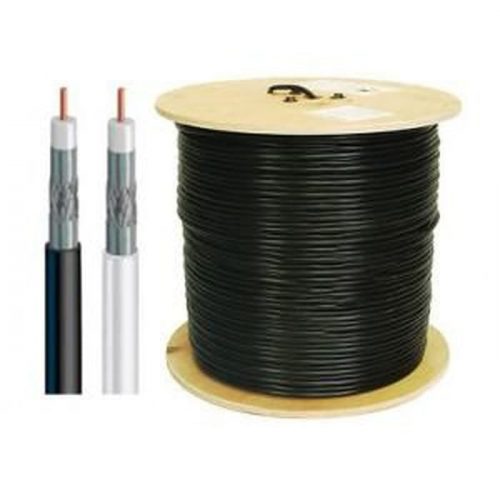

Product Type Coaxial video cable
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America

Construction Materials
Construction Type Non-armored
Center Conductor Material Copper-clad steel wire
Dielectric Material Foam FEP
Shield (Braid) Coverage 60 %
Shield (Braid) Gauge 34 AWG
Shield (Braid) Material Aluminum
Shield (Tape) Material Aluminum/Poly
Jacket Material PVDF

Dimensions
Cable Length 305 m | 1000 ft
Cable Weight 58.00 lb/kft
Diameter Over Center Conductor 1.6281 mm per 1 strand
0.0641 in per 1 strand
Diameter Over Dielectric 7.1120 mm | 0.2800 in
Diameter Over Jacket Tolerance ±0.008 in
Diameter Over Jacket, nominal 8.915 mm | 0.351 in
Diameter Over Shield (Braid) 7.899 mm | 0.311 in
Diameter Over Shield (Tape) 7.366 mm | 0.290 in
Jacket Thickness 0.508 mm | 0.020 in
Jacket Thickness, minimum spot 0.406 mm | 0.016 in

Electrical Specifications
Capacitance 52.5 pF/m | 16.0 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±3 ohm
Conductor dc Resistance 11.00 ohms/kft
Dielectric Strength, conductor to shield 4000 Vdc
Jacket Spark Test Voltage 5000 Vac
Nominal Velocity of Propagation (NVP) 84 %
Shield dc Resistance 6.90 ohms/kft
Structural Return Loss 15 dB @ 1000–3000 MHz | 20 dB @ 5–1000 MHz
Structural Return Loss Test Method 100% Swept Tested

Environmental Specifications
Environmental Space Plenum
Flame Test Method CMP
Safety Standard cETL | ETL
UL Temperature Rating 125 °C | 257 °F

General Specifications
Cable Type Series 11
Jacket Color White
Supported Application Video
Product Number 2285K
Center Conductor Gauge 14 AWG
Center Conductor Type Solid
Packaging Type Reel
