Internal High-Gain Antenna
Integrated 5 dBi antenna for optimal coverage and signal penetration through walls, floors and ceilings.
Multiple Operation Modes
Includes Access Point, WDS Bridge, WDS Access Point, and Universal Repeater modes.
Hardware
RF: 2.4 GHz Frequency Band
Standard: IEEE 802.11b/g/n
IEEE 802.11b/g: 2.400~2.484 GHz
Data Rate: Up to 300 Mbps
Memory: 32MB
Flash Memory: 4MB
Power Consumption: Up to 4W
Antenna
Internal 5 dBi Omni-Directional Antenna (diversity support)
Physical Interface
1 x RJ-45 Fast Ethernet (10/100 Mbps)
1 x Reset Button
Power Jack
LEDs Status
Power
LAN (10/100 Mbps)
WLAN (Wireless Connection)
Power Requirements
Power Supply: 90 to 240 VDC 10%, 50/60 Hz
(depends on different countries)
Active Ethernet (Power-over-Ethernet, IEEE 802.3af)
Power Adapter (United States) 48VDC/0.375A
Device: 12V/1A
Modulations
OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
Operating Channels
2.4 GHz: US/Canada 1-11
Topology
Infrastructure/Ad-Hoc
Operation Modes
Access Point, WDS Bridge, WDS Access Point, Universal Repeater
Multiple BSSID
Supports up to 8 BSSIDs per radio
LAN
IP (check validity and DHCP server IP range)
DHCP Server
DHCP range, lease time, client list
SSID-to-VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
Spanning Tree
Supports 802.1d Spanning Tree Protocol
Wireless
Wireless Mode: 11b/11g/11n
Channel selection (settings vary by country)
Channel bandwidth (Auto, 20 MHz, 40 MHz)
Transmission rate:
2.4 GHz: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only
QoS
WMM (Wireless Multimedia)
VPN
Pass-through (PPTP, L2TP, IPSec)
WPS
Software only
Package Contents

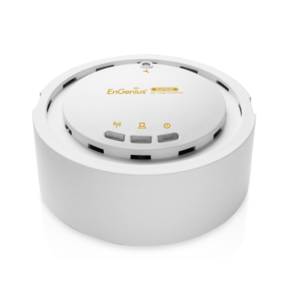

EAP300 N300 Indoor Access Point
12V/1A Power Adapter
Ceiling Mount and Wall Screw Kit
Mounting Bracket
RJ-45 Ethernet
