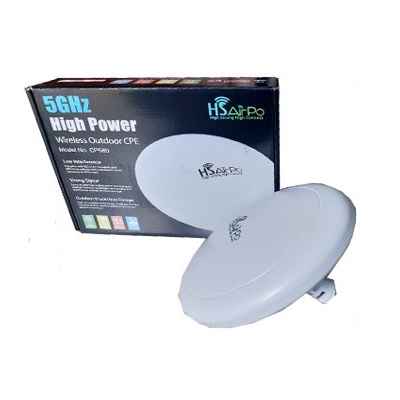

Airpo cp580 adalah CPE Outdoor dengan mengunakan chipset Qualcom Atheros AR 9344 dengan RF Power 300Mw dengan antena 2x 16db internal. Mempunya flash mem 8Gb dan Memory 64 yg membawa b/w up to 300mw

HARDWARE FEATURES

Interface

2 *10/100Mbps RJ45 Port

Power Supply

24V DC/1A (PoE)

Button

1*Reset Button

DC IN

1*DC in port

Antenna

2 *16dBi internal dual-polarization antennas

Environment

Operating Temperature: 0℃~55℃ (32℉~131℉)

Storage Temperature: -20~65℃ (-4℉~149℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

WIRELESS FEATURES

Standards

IEEE 802.11n, 802.11a, IEEE 802.3, IEEE 802.3u, IEEE 802.3x

RF Frequency

5GHz

Data Rate

802. 11n: up to 300Mbps

802.11a: up to 54Mbps (dynamic)

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Channels

5020-6085Mhz

Modulation Type

DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity

135M: -65 dBm@10% PER

54M: -68 dBm@10% PER

11M: -85 dBm@8% PER

6M: -88 dBm@10% PER

1M: -90 dBm@8% PER

SOFTWARE FEATURES

Status

A summary of wireless status

Lan

LAN configuration

Wireless

AP

Station

WIFI Advances

Operating frequency

Transmit Power

Distance

Diagnostics

Network Utilities

Netwrok Watchdog

Netwrok Watchdog(NWD)

System

Administrative Account

Update/Reset

Autoreboot

Reboot

Physical Property

Temperature

Working： -10°C~55°C

Storage： -20°C to 70°C

Humidity

5%~95%( typical)

Waterproof

IP65

Kelengkapan :

– 1unit AIRPO CP 580

– 1unit POE adaptor power

– 1pcs cable patchcord /lan

– 2pcs cable ties

– user manual
