– Proven Performance and Reliability
– Easy Configuration and Management
– Advanced Network Security
– IPv6 Support
– Enhanced QoS
– Enhanced Security
– Meets EEE (Energy Efficient Ethernet) 802.3az standard

– Security Features: 802.1x Radius authentication, DHCP snooping, IP-MAC binding, Port security supports limited dynamic lock and locked MAC address, Management access control
– Dimensions (LxWxH): 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
– Power Input: 100240V, 50-60 Hz, (0.7A max)
– System Power Consumption without PoE+: 110V:13.55W, 220V:13.66W
– Weight: 2.378 kg (5.23 Ibs.)
– Operating Temperature: 0 to 50C (32 to 122F)
– Operating Humidity: 10 to 90% RH
– LEDs: System (blue), Link/Act (green)
– Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1d, IEEE 802.1Q/p, IEEE 802.1X
– Management Interface: HTTP, HTTPS
– SNMP: Version 1, Version 2c
– Firmware Upgrade: Web Browser (HTTP/HTTPS), TFTP

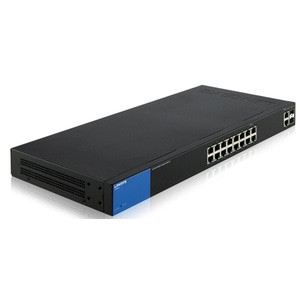

– Model Name: LGS318
– Storage Temperature: -40 to 70C (-40 to 158F)
– Mac Addresses: 8K
– Storage Humidity: 10 to 90% RH (non-condensing)
– Total System Ports: 18GE
– Copper FE/GE Ports (RJ45): g01g08, g09g16
– Combo Ports (RJ45 + SFP): 2 combo on ports g17, g18
– CPU Memory DRAM: 128 MB
– Green Power Mode: EEE+, Short Reach + Energy Detect
– Forwarding Rate: 26.79 Mpps
– Switching Capacity: 36 Gbps
– Jumbo Frame (FE, GE): 9K
– VLAN: Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
– HOL Blocking Prevention: Head-of-line (HOL) blocking prevention
– Port Mirroring: Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
– RMON: Embedded remote monitor
