Product Number : EX3700
WiFi Technology : 802.11ac
WiFi Performance : AC750 (750 Mbps)
WiFi Band : 2.4GHz and 5GHz
Number of Ethernet Ports : One (1) fast Ethernet port
Number of USB ports : Not applicable
Key Features : Extend Internet access for wireless devices throughout your home
Fast Ethernet port to connect home A/V devices to the network
Supports new 802.11ac & b/g/n WiFi devices
Simultaneous dual band WiFi to extend your speed up to 750Mbps and reduce interference
FastLane Technology to establish one super high-speed connection for HD streaming and gaming
External antennas for better coverage
Two WiFi modes to extend your existing WiFi connection or create a new WiFI access point
Ease of Use
CD-less setupgreat for mobile devices
Push N Connect using Wi-Fi Protected Setup (WPS)1
Security
WiFi Protected Access (WPA/WPA2-PSK) and WEP

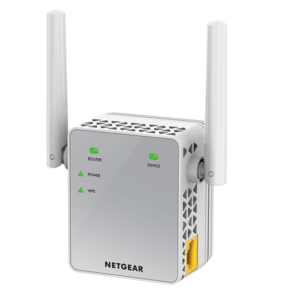

Product Diagram

Package Contents
AC750 WiFi Range Extender (EX3700)
Quick start guide
Physical Specifications
Dimensions: 55.17 x 67.17 x 39mm (2.17 x 2.64 x 1.54in)
Weight: 130 g (0.29lb)
Standards
IEEE 802.11 b/g/n 2.4GHz
IEEE. 802.11 a/n/ac 5GHz
One (1) 10/100Mbps Fast Ethernet port with auto-sensing technology
System Requirements
2.4 and/or 5GHz 802.11 a/b/g/n/ac wireless router or gateway
Microsoft. Internet Explorer. 8.0, Firefox. 20, Safari. 5.1, Google Chrome 25.0 browsers or higher
Data throughput, signal range, and wireless coverage per sq. ft. are not guaranteed and may vary due to differences in operating environments of wireless networks, including without limitation building materials and wireless interference. Specifications are subject to change without notice. The product may not be compatible with routers or gateways with firmware that has been altered, is based
