AP Ceiling Mount

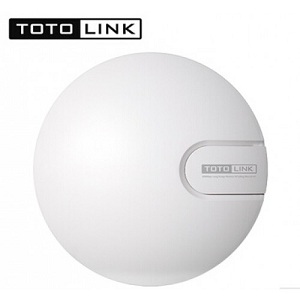

N9 300Mbps Long Range Wireless N Ceiling Mount AP
– 300Mbps Data Rate, Wireless N Compliant
– Decent Ceiling Mount Style, Space Saving
– Wide-Coverage
– Soft AC Controller for Centralized Management
– Flexible Power Supply by Passive PoE
– Effective Multiple BSS function
– Robust Security

Features

– Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN.
– Up to 300Mbps data rate for Wi-Fi network.
– Practical and elegant ceiling mount design.
– Supports AP central management via SoftAC.
– Advanced MIMO technology enhances the throughput and wireless coverage.
– Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
– Multiple BSS allows user to add other SSIDs for access management.
– AP/WDS/Repeater mode selectable for different requirements.
– PoE power supply supported simplify the deployment.

Interface : 1 *100BaseTX (Auto MDI/MDIX) LAN Port
Button : 1 *Reset/WPS Button
Power Supply : 48V DC/0.6A – IEEE 802.11af PoE
LED Indicator Antenna : 1 *System

WIRELESS FEATURES
Standards : IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.3af
RF Frequency : 2.4~2.4835GHz
Data Rate : 802. 11n: up to 300Mbps , 802.11g: up to 54Mbps (dynamic) , 802.11b: up to11Mbps (dynamic).
Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
EIRP : 20dBm
Channels : 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
Modulation Type : DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)
Reception Sensitivity : 270M: -61 dBm@10% PER
