5GHz AirMax BaseStation, 22dBi, 45 deg, AC

AM-5AC22-45

airMAX® ac 2×2 BaseStation Sector Antenna The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

AM-5AC22-45
Dimensions (mm) 750 x 215 x 94
Weight 6 kg
Frequency Range 5.10 – 5.85 GHz
Gain 22 dBi
HPOL Beamwidth 45° (6 dBi)
VPOL Beamwidth 45° (6 dBi)
Electrical Beamwidth 4°
Electrical Downtilt 2°
Max. VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 347 N @ 200 km/h (78 lbf @ 125 mph)
Polarization Dual-Linear
Cross-pol Isolation 30 dB Min.
ETSI Specification EN 302 326 DN2

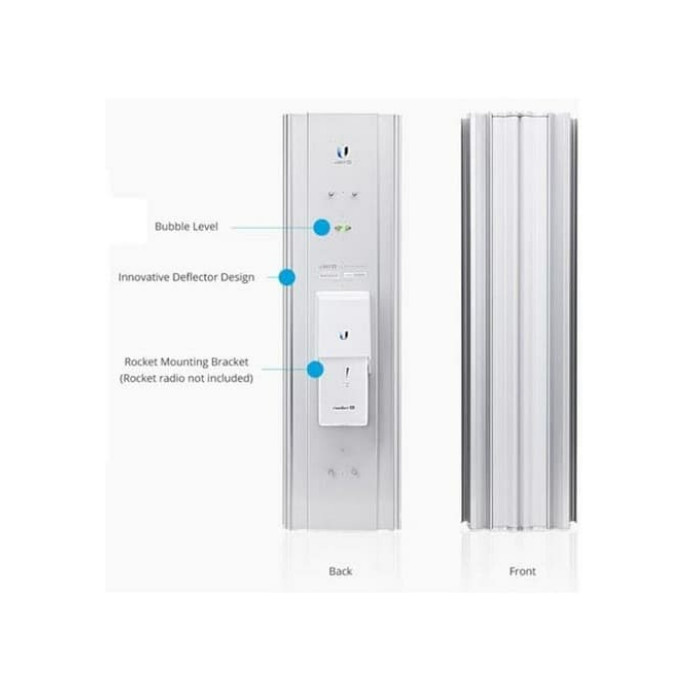

Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
